AVAILABLE LENGTHS
16’,18’,20‘
STANDARD FEATURES
- - 10,000 LB GVW
- - 2 5/16" BULL DOG STYLE (12,500LB)
- COUPLER
- - 82" DECK WIDTH
- - 2" TREATED YELLOW PINE DECK
- - TREAD PLATE 2' DOVE TAIL
- - 2 - 60" X 3" CHANNEL IRON UNDER
- MOUNTED RAMPS w/ HOLDERS
- - 2 - 5,200 LB ELECTRIC AXLES
- - 5 LEAF SPRING SUSPENSION
- - 4 NEW SILVER MOD WHEELS
- - 4 NEW 235/80 R 16 10 PLY TIRES
- - 5" CHANNEL WRAP TONGUE
- - 3" X 5" X 1/4" ANGLE IRON FRAME
- - 2" X 3" X 3/16" ANGLE CROSS MEMBERS
- ON 16" CENTERS
- - 2" X 3" ANGLE TOP RAIL w/ 2" X 3"
- ANGLE UPRIGHTS
- - TREAD PLATE 14 GAUGE DOUBLE-
- BROKE FENDERS 9" X 72"
- - 7,000 LB DROP LEG JACK
- - HEAVY DUTY SAFETY CHAINS
- - STAKE POCKETS
- - 7 WAY RV PLUG w/ STANDARD WIRING
- - ELECTRIC BREAK-AWAY KIT
- - DOT APPROVED LED SEAL BEAM LIGHTS
- - LICENSE PLATE BRACKET
- - MECHANICALLY CLEANED AND
- PREPARED FOR PAINT
- - AUTOMOTIVE GRADE ACRYLIC
- ENAMEL PAINT APPLIED w/ AN
- ELECTRO-STATIC APPLICATION
* INDICATES STANDARD OPTIONS
COUPLER OPTIONS
2 5/16" BULL DOG STYLE (12,500 LB)*
2 5/16" ADJUSTABLE BUMPER PULL (15,000 LB)
3" ADJUSTABLE PINTLE EYE (14,000 LB)
AXLE OPTIONS
2 - 5.2K ELECTRIC*
2 - 5.2K HYDRAULIC (BP)
DECK OPTIONS
2" TREATED YELLOW PINE*
1/8" TREAD PLATE
1-1/2" RUMBER (RUBBER & PLASTIC COMPOSITE FLOORING)
TAIL OPTIONS
2' DOVETAIL w/ 1/8" TREAD PLATE*
RAMP OPTIONS
60" X 3" CHANNEL UNDER MOUNTED*
60" X 3" CHANNEL STAND UP
NONE
OTHER OPTIONAL FEATURES
235/80 R16 10 PLY TIRES (*HEAVY STANDARD)*
235/85 R16 14 PLY TIRES (HEAVY OPTION)*
SPARE TIRE MOUNT
SPARE TIRE MOUNT w/ SPARE TIRE
CROSSMEMBERS ON 12" CENTERS
2" X 3" X 3/16" ANGLE IRON TOP RAIL
(for 14' models)
WRAP TONGUE (BP)*
FRONT MOUNTED TOOL BOX
7,000 LB DROP LEG JACK*
2ND FRONT JACK
2 REAR STABILIZER JACKS
TREAD PLATE 9" X 72" DBL BROKE FENDERS*

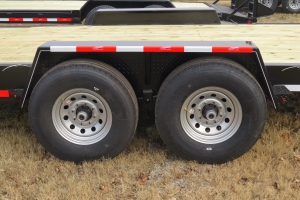

3/16" SMOOTH 9" X 72" FENDERS
LED LIGHTS*
*Product May Vary From Photo
